Patton SmartNode™

QoS VoIP Gateways, Routers and IADs Analog and Digital

SmartNode VoIP telephony solutions are more than just talk. These VoIP gateway, VoIP router, & VoIP telephony solutions really work. Over several years running Patton engineering has been developing and refining SmartNode VoIP technology. And Patton puts their advanced VoIP technology into every SmartNode VoIP router and VoIP gateway they make.

SmartNode offers VoIP gateway and VoIP router solutions with virtually every VoIP telephony interface, including ISDN PRI & BRI, T1, E1, FXS, FXO, and more. Plus SmartNode supports SIP, H.323, and MGCP VoIP technologies. That means SmartNode VoIP technology solutions will fit your network.

Among VoIP technologies, SmartNode is mature. Tested and deployed in hundreds of real-world networks, SmartNode enterprise VoIP telephone and VoIP provider solutions are fully proven. That's why enterprises, carriers, and VoIP providers all over the world choose Patton SmartNode.

Contact ABP to learn about these VoIP gateways

Feature List- Models

ANALOG GATEWAYS

SmartNode 4110 Series. Up to eight simultaneous calls from the phone, PSTN, or IP. Use any CODEC or Fax on any port, any time. Up to 8 Ports FXS / FXO. Single 10/100 Auto-sensing Ethernet. Console port for easy access. Ideal for Toll Bypass applications

SmartNode 4520 Series. Same voice connectivity as the 4110 series, but with two Full-Duplex Auto-sensing Auto-MDX Ethernet. Use any CODEC or Fax on any port, any time. Up to 8 Ports FXS / FXO. Dual 10/100baseT Ethernet. Full IP Routing: DHCP, NAT, Firewall/ACL, and PPPoE clients.

SmarNode 4830 Series. Up to eight simultaneous calls from the phone, PSTN, or IP. Use any CODEC or Fax on any port, any time. Up to 8 Ports FXS / FXO. Adds additional functionality by adding the WAN port, providing direct IP access over PPP, Frame Relay, or ATM. WAN options from X.21, V.35, ADSL, G.SHDSL, and E1/T1.

SmartNode 4400 Series. The SmartNode 4400 delivers the benefits of VoIP, the convenience of standard FXS/FXO ports and full WAN routing features. This IpChannel Bank transforms any PBX or call-center application into a state-of-the-art packet-voice system. Provides an easy way to integrate Analog end devices to a new IP PBX platform. 12/16/24 or 32 FXS or FXO ports. Dual 10/100 Ethernet. 802.1p, TOS, DiffServ, and DownStreamQoS for clear, uninterrupted voice.

SmartNode 4900 Series. The SmartNode 4900 delivers the benefits of VoIP, the convenience of standard FXS/FXO ports and full WAN routing features. This IpChannel Bank transforms any PBX or call-center application into a state-of-the-art packet-voice system. 12/16/24 or 32 FXS or FXO ports. Dual 10/100 Ethernet. Dual Power Supply. Optional WAN links: X.21, V.35, G.SHDSL, or T1/E1. 802.1p, TOS, DiffServ, and DownStreamQoS for clear, uninterrupted voice.

BRI DIGITAL GATEWAYS

SmartNode 4552. The 2-channel SmartNode 4552 is the perfect way for ITSPs and SMEs to deliver integrated ISDN phone/fax & data services to SoHo users. Dual ISDN BRI/So ports with NT and TE support. Fast-Ethernet WAN and integrated 4-port LAN switch. Complete enterprise router with IPSec, PPPoE, DHCP, NAT and Firewall.

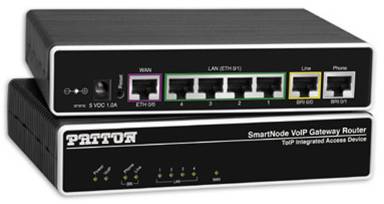

SmartNode 4562. Similar in connectivity to the 4552, this model adds an accelerated cryptographic processor, and VPN License. Dual ISDN BRI/So ports with NT and TE support. Fast-Ethernet WAN and integrated 4-port LAN switch. Accelerated Voice over VPN. 2 simultaneous voice or fax calls.

SmartNode 4630 Series. The SmartNode 4630, with up to 5 BRI ports and up to 8 simultaneous voice channels, is the best way to connect ISDN networks to the world of voice over IP. It includes an extra BRI port for fallback or local-breakout – providing optimized call-routing and risk-free operation. 3 or 5 BRI So ports, NT/TE configurable. 4 or 8 simultaneous voice or T.38 fax calls. Dual 10/100bT Ethernet. Life-line failover relay and terminal power.

SmartNode 4650 Series. The SmartNode 4650 adds WAN connectivity to the award-winning 4630 series. This single box is triple-play capable with broadband access, VoIP, and IGMP v2/v3 proxy functionality. 3 or 5 BRI So ports, NT/TE configurable. 4 or 8 simultaneous voice or T.38 fax calls. Dual 10/100bT Ethernet. Life-line failover relay and terminal power. ADSL, G.SHDSL, X.21, and V.35, and E1/T1 data options. SIPv2, H.323v4, and MGCP/IUA support

PRI DIGITAL GATEWAYS

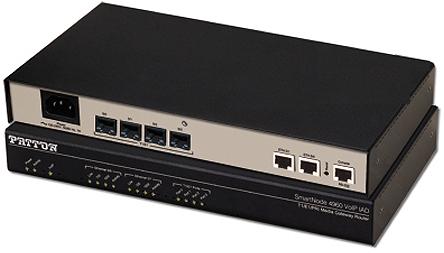

SmartNode 4960 Series. Up to 4 software configurable T1/E1/PRI interfaces the SN4960 connects to any switch, PBX, and data network. G.SHDSL connectivity as optional and supports multiple PVC and DSLAM interoperability. Dual Gigabit Ethernet. Up to 120 simultaneous voice or T.38 calls – any CODEC. Up to 5.7 Mbps symmetrical throughput.

SmartNode 4961 Series. The SN4961 combines the power and flexibility of the SN4960 with a High-Precision Oscillator. The SmartNode 4961 comes with 4 T1/E1/PRI ports, two GigE ports, and supports up to 120 simultaneous voice or T.38 calls – any CODEC. Up to 5.7 Mbps symmetrical throughput with optional G.SHDSL.bis.
