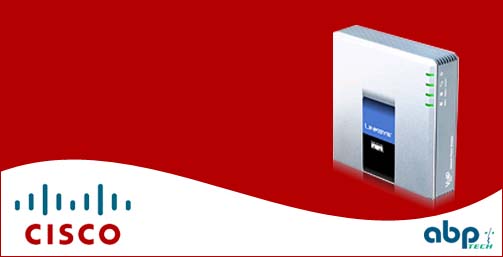

Cisco PAP2T-NA

2 Ports FXS Analog Telephone Adapter, 1 Ethernet Port LAN

Inexpensive, easy-to-install and simple-to-use, the PAP2T-NA connects standard telephones to IP-based data networks. IP telephony service providers and enterprises can offer users traditional and enhanced communication services via the customer's broadband connection to the Internet or Local Area Network (LAN).

The Cisco PAP2T Internet Phone Adapter enables high-quality feature-rich VoIP (voice over IP) service through your broadband Internet connection. Just plug it into your home Router or Gateway and use the two standard telephone ports to connect analog phones or use one of the ports for a fax machine. Each phone port operates independently, with separate phone service and phone numbers, like having two telephone lines. You'll get clear reception and a reliable fax connection, even while using the Internet at the same time.

Discover ABP's Configuration,Provisioning and Fulfillment service. The key to profits is to focus on core competency. Leave the CPE handling to us and develop a better product, an improved concept. Put energy into and sales and marketing! We think that's a handfull.

Product Line Overview

Independently configurable phone ports. Two voice ports (RJ-11) for analog phones or Fax machines

Fax Tone Detection Pass-Through. Fax Pass-Though - Using G.711

Call Waiting, Cancel Call Waiting, Call Waiting Caller ID

Caller ID with Name/Number (Multi-national Variants);Caller ID Blocking

Call Forwarding: No answer, Busy, All

Do Not Disturb

Call Transfer

Three-way Conference Calling with Local Mixing

Message Waiting Indication - Visual and Tone Based

Call Return; Call Back on Busy

Call Blocking with Toll Restriction

Delayed Disconnect

Distinctive Ringing - Calling and Called Number

Off-hook Warning Tone

Selective/Anonymous Call Rejection

Hot line and Warm Line Calling

Speed Dialing of 8 Numbers/Addresses

Music on HoldMessage Waiting Indication - Visual and Tone Based

Downloadable firmware updates;

Terminating Impedance Agnostic - 8 Settings

G.711 (A-law and µ-law); G.726 (16/24/32/40 kbps); G.729 A (only one per FXS port);
G.723.1 (6.3 kbps, 5.3 kbps)

TOP

Product Application Scenarios

Corporate Private Telephony Networks

Internet Telephony Service Provider Network for Residential Users ISP Voice Services

OPX Off Premise Extensions for PBX or IPBX (Phone and FAX)

Resources

PAP2T-NA Data Sheet
