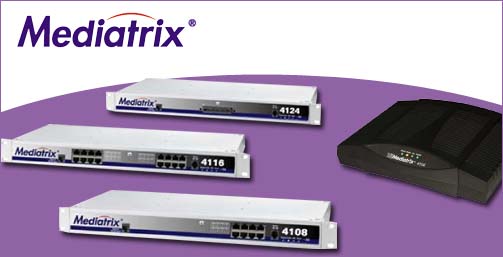

Mediatrix 4100 Series

Family of VoIP Access Devices

The Mediatrix 4100 Series is the result of 10 years of Mediatrix experience in the VoIP access device market and is the sound and logical evolution of the well-known and deployed Mediatrix 1104 and 1124 product lines. With the capability to connect 4, 8, 16, or 24 analog phones and/or faxes to a broadband modem or LAN and based on a single platform, the Mediatrix 4100 Series enables cost-effective VoIP deployments in medium-size branch offices and multi-tenant applications, with varying demands for port uses.

This latest generation of product is another positive step forward in ensuring best-in-class total cost of ownership combined with the Mediatrix recognized quality and reliability levels, which is essential to the enterprise and carrier markets.

In addition to the SNMPv3 complete interface, the Mediatrix 4100 Series provides a web interface, giving users a convenient access to the unit for initial set-up. The devices can also auto-provision by fetching their encrypted configuration from a TFTP or HTTP server, making installation secure and transparent to the end-users. To further facilitate deployments, factory-loaded configurations are possible. In addition, an intelligent PSTN bypass allows Mediatrix 4100 Series users to make emergency calls and maintain their phone service in the event of a power outage or network failure.

The Mediatrix 4100 Series also has the additional benefit of supporting high compression codecs simultaneously on each analog voice ports, thus saving valuable bandwidth, with telecom grade voice quality and reliability.

Contact ABP to learn more about Mediatrix VoIP gateways.

Feature List
Technical Specifications
Product Applications Scenarios
Downloads

Features

Cost-effective VoIP access device enabling high-value IP Telephony applications

IP connectivity for up to four existing analog phones and/or faxes

Interoperable with equipment from leading industry vendors

Major savings in long-distance and PSTN access fees

Re-use of existing infrastructure such as analog phones and faxes

Simplified wiring = savings in ADDS/MOVES/CHANGES

Compliancy to current legacy standards increases compatibility with actual PBX or Key systems.

Access to essential PSTN Emergency calls capabilities even during power outages

Auto configurable, remotely manageable and upgradeable

TOP

Technical Specifications

Models:
Mediatrix 4104: 4 analog FXS ports
Mediatrix 4108 : 8 analog FXS ports
Mediatrix 4116: 16 analog FXS ports
Mediatrix 4124: 24 analog FXS ports

IP Telephony Protocol:
SIP – RFC3261
MGCP/NCS

Voice Processing:
G.711 (A-law, µ-law), G.723.1, G.729a,b
G.168 echo cancellation (64ms)
DTMF detection and generation
Carrier tone detection and Comfort Noise Generation level software adjustable
Configurable dejitter buffer
Configurable tones (dial, ringing, busy)
Configurable transmit packet length
RTP/RTCP - RFC 1889, RFC 1890, RFC 2833, RFC 3389

Fax and Modem Support:
Group 3/Super G3 Fax real-time FoIP over clear channel (G.711), G.726 or T.38
T.38 Fax relay (9.6 k, 14.4 k)
G.711 Fax and Modem Bypass

Management:
Web-based GUI
TFTP, HTTP configuration up- and download (Auto-provisioning)
SNMPv1, v2 and v3 agent (MIB II and private MIB)

WAN Connection:
1 x 10/100 Base T Ethernet Rj-45 connector

Analog Connection:
Mediatrix 4124: 1 x RJ-21X TELCO 25 pairs connector, analog phone/fax (FXS) interface
Mediatrix 4116: 16 x RJ-11 connectors, analog phone/fax (FXS) interfaces
Mediatrix 4108: 8 x RJ-11 connectors, analog phone/fax (FXS) interfaces
Mediatrix 4104: 4 x RJ-11 connectors, analog phone/fax (FXS) interfaces

Bypass Connection:
1 RJ-11 connector, PSTN bypass

QoS:
TOS/DiffServ
IEEE 802.1p/Q

Enhanced Telephony Features:
Call Forward / Call Transfer / 3-way Conference Call / Call Waiting / Caller ID on Call Waiting / Call on Hold
Dynamic De-Jitter Manager
Voice Activity Detection/ Comfort Noise

Operatinig Environment:
Storage temperature: -20°C to 70°C
Dynamic De-Jitter Manager
Humidity: up to 85%, non-condensing

Power Supply:
AC: Standard power cord receptacle (IEC 320-C14) for universal AC input internal SMPS

Unit Dimensions and Weight:
5.5 cm x 26.0 cm x 17.7 cm (1.8 in. x 18.9 in. x 8.6 in)
Unit Weight 1781 g (3.9lbs)

Product Application Scenarios

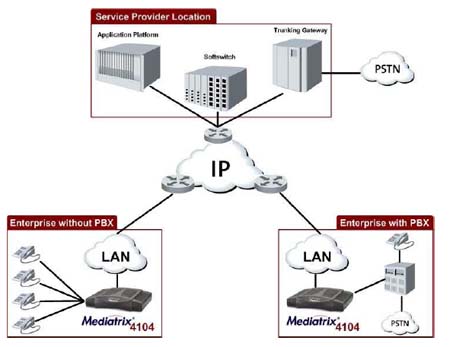

SOHO Scenarios

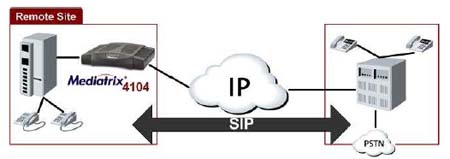

Small Branch Office Connectivity

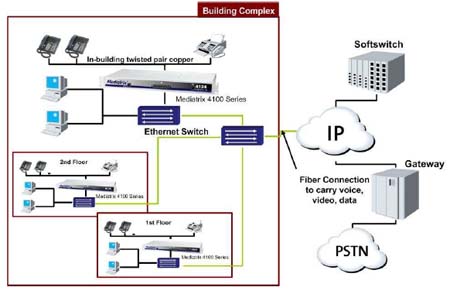

Multi Tenant / Dwelling Scenarios

Downloads Product Brochure

Product Brochure Mediatrix 4100

Product Brochure Mediatrix 4104
