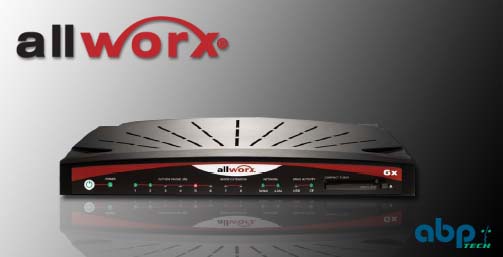

Allworx 6x ™

Communications designed exclusively for small business

The Allworx 6x™ is a state-of-the-art communication system that integrates a sophisticated phone system, a robust data network, and software tools — all working together to increase employee productivity and business revenues. Designed for companies of up to 30 users per site, Allworx improves communications while simultaneously reducing costs.

the Allworx 6x™ is a “plug-and-play” system that delivers all the benefits of VoIP technology, without sacrificing traditional functionality or disrupting operations.

The system offers a host of advance features by adding on additional modules to the basic unit. Advance features including a built-in, eight-way conference-bridge system and Call Queuing, VPN, calendaring, expanded voicemail and the new Allworx Call Assistant software.

Ultimate SPI fi rewall security, full PC router, robust WAN access with POP3 and
SMTP email, and web hosting with support for HTTP and FTP make the Allworx 6x™ a powerhouse business server.

This extremely versatile and affordable system – in a compact design about the size of a laptop computer - links voice and data transmissions, digital and analog calling, Internet and Intranet, and is compatible with more VoIP service providers than any other product.

Feature List

Phone System

30 user extensions (e.g. individuals) with voicemail and 30 system extensions

Six standard ports supporting CO (Central Office) line, expandable up to 30 lines

Power fail port for dedicated analog phone extension, ensuring phone access during power failure

Two, standard, dedicated internal analog stations. RJ-11 FXS ports for analog phones or fax

Supports both ITSP and traditional phone lines (Central Office lines) simultaneously

Each phone user gets seven unique phone Presences (In Office, At A Meeting, On Vacation, On Business Trip, At Home, Away, Busy). Set Presence status via phone or Allworx software

Receive, review and respond to all email, voicemail and meeting requests in one InBox

Listen and respond to voicemail messages via PC

Supports voicemail notification to cellular text messaging services

Six hours of voicemail (with 256 MB Compact Flash). Additional voicemail storage available via external USB hard disk

8-port voicemail system; date and time stamping. Voicemails can be sent to any POP3 email too.

Messages can be listened to, saved, deleted or forwarded to another extension

Remote plug-n-play with Allworx VoIP phones

Non-Allworx phones will work and have similar functionality, depending type of phone used

Compatible with Music On Hold and Overhead Paging systems

Nine unique auto attendants. Time-dependent Auto Attendant routing options

Each Allworx 6x can connect to other Allworx units — supports up to 100 sites

Network Server

Public WAN interface and fully secured LAN subnet

Email server — POP3 and SMTP email standards

Web server — Intranet and Internet with HTTP and FTP functionality

Built-in company Internet and Intranet site

Static IP, DHCP client, or PPPoE support on WAN. DHCP (Dynamic Host Configuration Protocol) server to LAN. DHCP client support on WAN

Fully integrated DNS (Domain Name Server)

TCP/IP routing support between LAN/WAN

PPPoE (Point-to-Point Protocol over Ethernet) capability

Supports classful and classless routing

SPI (Stateful Packet Inspection) firewall security

NAT (Network Address Translation) mode

Network port forwarding capability

VPN (Virtual Private Network)1 — PPTP (Point-to-Point Tunneling Protocol) security

DMZ (Demilitarized Zone) mode to protect WAN interface

Routes any device on network (PCs, printers, servers, IP phones, and others)

System administration software allows you to set routing tables

Firewall: Stateful Packet Inspection technology for enhanced security

TOP

Device Administration Features

All administrative functions (system, setup, diagnostics) are accessible via browser-based interface

Setup and management of entire system done via single interface: phones, networks, servers, users, maintenance and reports

Central management of company/employee settings

Spam blocker setup by Admin to select from free or pay-per-use spam block list services

TOP

Security

Outbound call control with PIN codes and system-wide blocking

Password protection at both user and administration levels

Call detail reporting of all phone system activity with easy export to MS Excel or any standard spreadsheet program for further analysis

System backup and restore — automatically saves configuration attributes and voicemail messages

TOP

Industry compatibility

Fully supports selected VoIP phones, including Cisco 7960, 7940, 7912, and 7905

Compatible with VoIP phones that follow SIP protocol

Compatible with softphones, including Pingtel Instant Expressa, EyeP Media, and xTen

Supports G711 and G729 endpoint connections

Supports SIP 2.0 (Session Initiation Protocol)

Compatible with any POP3 email tool

Compatible with Internet Telephony Service Providers (ITSPs)

TOP

High end calling features

One 8-seat conference bridge

Each IP phone on the network can support its own 3-way conference call

Programmable dialing plans route your calls through lowest-cost telephone providers

Broadcast message capability — internal or external distribution lists

Call Viewer — View the status of headsets, CO lines, parked calls and call queues

Powerful call control functions, including:
– Audited outside line access
– Call blocking
– Call forward and transfer
– Call hold
– Call monitors
– Call park and retrieve
– Call pickup
– Call Queueing
– Call routing
– Call waiting
– Caller ID
– Dial by name or extension; dial from directory
– Distinctive ring
– Do not disturb
– External call diversion
– Flexible numbering plan
– Hunt groups
– Internal extension distinctive ring
– Multiple line access
– Operator manager
– Overhead paging
– Parking orbits
– Prepending digits
– Private lines
– Redial
– Speed dialing
– TAPI support — automatic dialing and caller ID pop-ups

TOP

Downloads

Allworx 6x Overview 89KB
