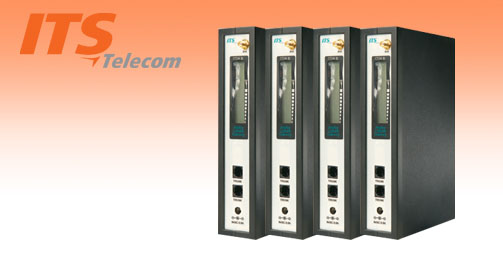

Universal Analog Gateway

Convergence of Cellular and PSTN Interfaces in One Box

The universal gateway expands your business mobility needs allowing working where and when you want staying connected and organized when out of the office.

The gateway's Call Forward feature allows you to manage your call diversion to any predefined number, making it easy to keep in touch with your customers while you're on the go.

The Call Back and Call Through features of this gateway allow remote employees to place calls through your organizational phone system at lower long-distance rates, as if they were in the office.

The universal analog gateway can be installed on regular phone lines in your small or home office. That means that you can plug in a standard analog telephone and call directly to the PSTN and GSM network. No additional equipment is needed.

Contact ABP to learn more about this gateway.

Key Features
Technical Specifications
Downloads

Key Features

System
• Call Forward
• Call Back
• Call Through
• Call Forward No Answer
• Call Control
• Network Interchangeability
• One number for all contacts
• CLIP/CLIR
• CDR - log for up to 150 records
• Gain control

Technical Specifications

Management and Monitoring

Programming: GUI / DTMF

CDR (no. of records): 150

Prepaid SIM card administration

Control & Maintenance

CLIP/CLIR

Gain control

System specifications

No. of cellular modules in each board/system: 1

GSM support: 900/1800, 850/1900 MHz

UMTS* 2.4GHz

No. of SIM cards per card/system: 1

SIM card (plug in, small): 3V

Receiver sensitivity: -103dBm

Power supply input: 110VAC, 60Hz / 220VAC, 50Hz

Power supply output: 9VDC, 1.5Amp

Hardware Specification

Indicator: LCD

Dimensions (H*W*D): 34*321*312 mm / 8.4*4.7*1.7"

Weight: 0.8 kg / 1.76 lbs

Operating temperature: 0oC-45oC / 32oF-113oF

Relative humidity: 5-95%

Installation: Wall mounting

Antennas

Antennas: Omni - 2.5 db SMA
