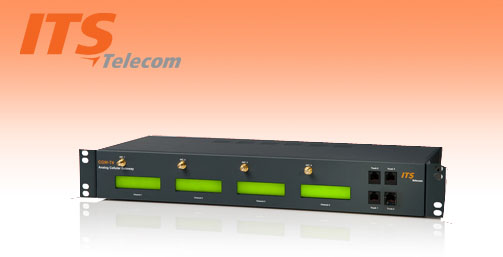

ITS Telecom CGW T4

4 Channels Analog to GSM Gateway

ITS Telecom had recently released the CGW T4, a new member to its Cellular Gateways family.

The CGW-T4 is an analog gateway with up to four separate channels, an ideal solution for small businesses that need to manage at least four concurrent calls with up to four different service providers. The CGW T4 is based on ITS CGW T technology, which is selling worldwide for more than 5 years now and has handled millions of calls up to date.

The CGW-T4 can be connected to the PBX analog trunk or directly to four different phones for offices without a PBX. In both cases, its simple plug and play installation means it can be up and running in a matter of minutes. The CGW-T4 comes with four informative LCD displays.

The CGW T4 offers the following features to the users:

• 4 Analog to GSM channels – With the ability to execute 4 concurrent calls to one or several (up to 4) cellular operators
• Cost Effective - Affordable solution with fast ROI
• Multiple connectivity - Connects either the office's pbx or directly to a telephone line
• Easy to install – Up and running in a matter of minutes
• Rugged, 19'' rack design – For installations in a communication rack

Some of the CGW-T4 benefits for the end -users are:

• Lowering costs of interconnection fees
• Maximizing VPN tariff plans
• Redundancy of landline infra-structure
• Rural area SMB solution
• Temporary sites with the need of several comm lines
• Different installation modes – Also for offices with no PBX


Contact ABP to learn more about this gateway.

Technical Specifications
Downloads

Technical Specifications

* Dual-band GSM engine
* Toll Restrictions
* Call Duration control
* Output volume control
* Easy DTMF programming, no PC required
* CLIP / CLIR
* Software upgradeable
* Informative LCD: system & calling status
* LCR table, Roaming, Call Barring
* Loop disconnect
* Reverse polarity, CLIP / CLIR

Management & Monitoring: Programming: DTMF

Control & Maintenance: CLIP/CLIR. Gain control

System specifications
No. of cellular modules in each board/system: 1
GSM support: 900/1800, 850/1900 MHz
No. of SIM cards per card/system: 1
SIM card (plug in, small): 3V
Receiver sensitivity: -103dBm
Power supply input: 110VAC, 60Hz / 220VAC, 50Hz
Power supply output: 9VDC, 5Amp

Hardware Specification
Indicator: Led / LCD
Dimensions (H*W*D): 64x433x174mm / 2.5x17x6.85"
Weight: 2.8Kg/ 6.17Lbs
Operating temperature: 0oC-45oC / 32oF-113oF
Relative humidity: 5-95%
Installation: Wall mounting

Accesories. Antennas: Omni- 2.5 db SMA
