Eicon Networks DivaTM Server Cards


The most flexible, scalable, open platform, for voice and unified communications

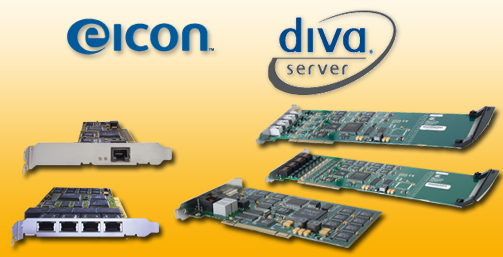

Eicon's Diva Server is a family of hardware and software enabling products which provide communication applications with telephony networks connectivity and call control, as well as rich media processing capabilities.

The Diva Server is a family of hardware and software products offering Remote Access, Fax and Voice technology to enable a multitude of today's most sophisticated communication solutions; including fax and wireless, analog and digital options. The family encompasses robust, intelligent communication hardware adapters for analog, ISDN BRI and PRI, and E1/T1 connections and a software adapter for IP Telephony enviroments.

The support of open standards and a single programming API ensure that Diva Server can be used in the widest spectrum solutions and that application can handle calls independently of the underlying network, whether is TDM or IP.

Other features includes new SIP Drivers, certified for Microsoft Speechserver and new free SDK 3.5 for Voice Application development.

Call ABP for more information.

Features

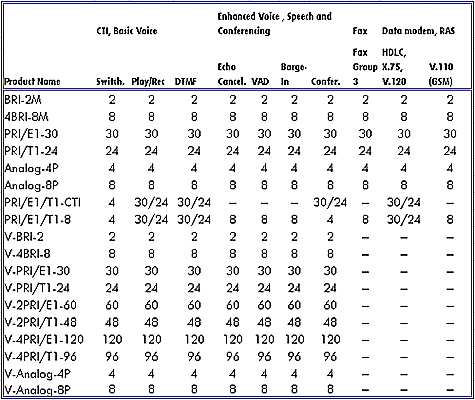

Diva Server Product Line

Product Application Scenarios Downloads

Features

Enables a broad set of applications, including CTI, voice, speech, conferencing, fax, and data modem

Meets latest PCI and PCI-X standards, offers lowest power consumption

Powerful on board RISC processors and dedicated DSP resources process real time tasks to enhance overal system performance

All adapters follow the same architecture and provide a common API so that once an application is designed, it can be used on all variants

Microsoft 2000, XP and 2003 (incl. 64-bit); Suse, RedHAT and Debian Linux distributions; Souce-level RPM for any other Linux versions

Up to eight adapters of any kind can be mixed and matched in a system, offering TDM/IP hybrid capabilities and scalability from 2 to 480 channles

Complying with Plug and Play standards eliminates comples installation tasks. GUI-based configuration and test tools are easy and intuitive

TOP

Diva Server Product Line

Product Application Scenarios

Diva Server Universal adapters are design for the unified communications market and include all important voice, speech and conferencing functions, as well as comphensive fax and data modem capabilities.

Diva Server PRI/E1/T1 adapters are powerful, full duplex telephony adapters for standard voice applications including IVR.

Diva Server V-Series adapaters are all no compromise, full function enhance speech and conferencing adapters that come with ample DSP resources so that every chanel can employ the most processing-intensive features without limitation.

Downloads Product Brochures

Diva Server 4PRI

Diva Server 4BRI-8M

Diva Server Analog 4P/8P

Diva Server BRI-2M

Diva Server V-4BRI

Diva Server V-Analog

Diva Server V-BRI

Diva Server V-PRI

Diva Server V-PRI/T1

Diva Server PRI/E1/T1-8

Diva Server PRI/E1/T1-CTI

Diva Server PRI/E1-30

Diva Server PRI/T1-24

Diva Server Diva Server V-2PRI/T1 - 48

Diva Server V-2PRI/E1 - 60

Diva Server V-4PRI/T1 - 96

Diva Server V-2PRI/E1 - 120
