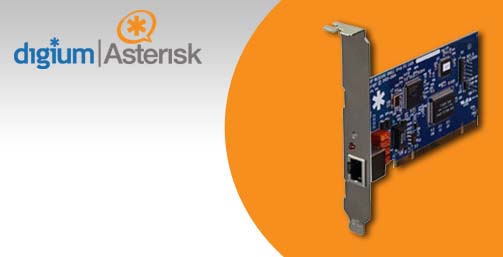

Digium Wildcard TE120P

The Wildcard TE120P is a compact and powerful interface that can easily toggle between T1/PRI or E1/PRI.

The TE120P is a compact, powerful, cost-effective, and flexible high-performance interface supporting voice and data transmission over T1, E1, and Primary Rate ISDN (PRI) connections.

The TE120P can be used to deliver a wide range of PBX and IVR services to the network or handset including Voicemail, Call Conferencing, Three-Way Calling, and VoIP Gateways. When used in conjunction with Asterisk, the TE110P offers the power to create a seamless network, interconnecting traditional telephony systems with the emerging Voice-over IP technologies.

A low profile, half-length PCI form factor allows this device to fit within a 2U rackmount case or equivalent chassis, offering excellent density for call center, service provider, and other space-sensitive applications.

Feature List

PRI Switch Capability

RBS Voice Modes: GR-303, A-Law, ì-Law, and Linear.

Modes Supported : E&M, E&M Wink, Feature Group D, Groundstart (FXO and FXS), Loopstart (FXO and FXS) with Optional Disconnect Supervision

Data Modes : SyncPPP (both Fixed and Dialup), Frame Relay, Cisco HDLC

Technical Specifications

The TE120P supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported, also included are advanced call features.

Physical Specifications

The TE120P is a 32-bit 33MHz card keyed for 5.0 or 3.3 volt operation.

TOP

Product Applications Scenarios

IPBX

Internet Telephony Service Provider Network for Residential Users

ISP Voice Services

Digital Gateway and Protocol conversion with Asterisk SIP <-> H323

TOP

Downloads

Wildcard TE120P Product Sheet 278 KB
