snom 190

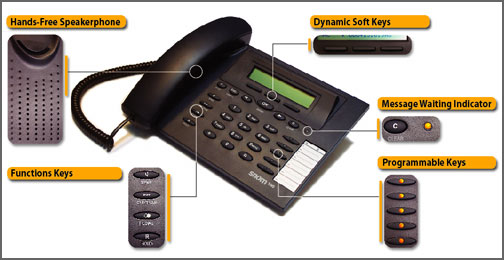

snom 190 Open Standard Multi-Line Business IP phone

The new enhanced snom 190 is the perfect solution for comercial IP Phone deployments in SOHO, SME and large corporate clients. The snom 190 utilizes the same great SIP stack and software as the snom 200 with a business PBX type housing and an additional 2nd Ethernet port. The snom 190 does not offer native POE (Power over Ethernet) however ABP supplies IEEE 82.3 POE splitters for the snom190 phone. snom in addition to it's advanced and mature SIP stack also supports H.323, and H.450. The phone can be used with the snom 4s soft switch solution for ITSP’s and enterprises and snom's SIP stack is constantly being interop tested with most SIP Servers in the market as well as Asterisk.

Of course the snom190 is the perfect phone to connect to PBXS using most leading Gateways or any new SIP based IPBX or hosted IPBX solution.

snom phones are designed for NAT traversal and feature STUN and UPnP. Together with snom's mass deployment system for easy deployment and connectivity with any web provisioning system snom allows for lowest deployment cost and TCO. Please call ABP to discuss custom branding and OEM solutions.

Contact ABP to learn more about the snom phones or the snom 4s turnkey VoIP telephony systems.
Features
Technical Specifications

Product Applications Scenarios
Downloads

General Specifications

The snom190 incorporates a new audiosubsystem with a state of the art full duplex speakerphone, echo cancelation, 3 way calling all done by its new DSP.

With the new snom 190, snom technology sets new standards regarding flexibility and interoperability. The phone is compatible with major vendor VoIP-gateways and gatekeepers based on the open standards SIP and H.323/H.450, which makes it easy to integrate in an existing LAN/WAN environment.

With Linux as the underlying operating system; stability, security, flexibility, and high quality are snom 190’s strengths. With seamless remote software updates and remote provisioning features the snom 190 is ready for your implementation.

The voice quality of the snom 190 cannot be distinguished from traditional phones. With its 2 by 24 LCD and web interface, management, configuration, and remote upgrades are a simple and expedient task.

Feature List

phone book

conference call

call divert

call hold, call wait, conference

caller waiting list

27 ring tones

DTMF

call list, deny list

tracing and logging diagnostic

redialling

HTTP Server

transfer

echo cancellation

speed dial

web server (dial from web interface)

TOP

Technical Specifications

Hardware

Power supply: 5V, 4-6 watts / ABP optional POE Splitter available

Memory: 16MB DRAM, 4MB  FLASH

CPU: Infineon / MIPS Processor

Temp range: 0 C to 40 C

Display: 2 x 24 display w/ graphical field

Keyboard: 30 keys, 6 LEDs

Audio: CNG- Comfort Noise generation, VAD- Voice Activity detections Dynamic Jitter-Buffer, Loudspeaker, Inclusive 27 ring tones
Voice compression, Echo compression, Silence suppression

Connector: (2) 10/100 BaseT E auto-detect, Computer headset jack

Measures: 78.5 cm W x 17cm H x 7cm D, Weight 690g

Software

Operating System: Linux

Configuration: Via web browser & / or Phone’s graphical display

Protocols Internet: IP, TCP, UDP, DHCP, TFTP, CMP, SNTP, XNTP, PpoE

Configuration: HTTP,HTTPS, SNMP

VoIP: SIP, SIPS, TAPI,RTCP, RAS,RTP,SRTP,VCAPI-VCAPI, STUN, ENUM, ICE

Voice encoding: G.711 ( u-law / A-law), G.729a, G.723, In band DTMF Out of band DTMF -RFC2833

TOP

Product Application Scenarios

Enterprise Solutions

SOHO Scenarios

SME Scenarios

Branch Office Scenarios

Multi Tennant / Dwelling Scenarios

Government Scenarios

Educational Scenarios

Event Telephony Scenarios

Satellite Telephony Scenarios

IPBX OEM Partners

Downloads

Data Sheet
