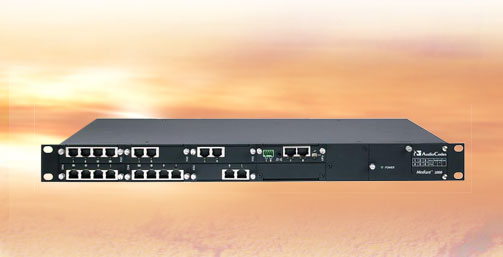

Modular and Scalable Media Gateway
The Mediant™ 1000 is the latest addition to AudioCodes low density media gateway family. AudioCodes has expanded its line of Mediant™ gateways by developing a modular platform with both analog and digital interfaces that can be used as an integrated platform for OEM and partner applications.
The Mediant™ 1000 is designed to interface between TDM and IP networks in enterprises as well as in small-scale carrier locations. Supporting multiple analog and digital modules with a variety in the number of spans, as well as supporting mixed digital and analog configurations, the compact and modular Mediant™ 1000 media gateway is extremely scalable.
The Mediant™1000 has enhanced hardware and software capabilities that provide superior reliability as an access MGW connecting the enterprise PBX to the telephony network, since it supports seamless installation of the gateway. This means that customers can have a seamless IP telephony service without any additional hardware or reconfiguration of their existing PBX. To achieve seamless installation, the media gateway is installed using a paired E1/T1 which provides life-line/PSTN fallback capabilities using one E1/T1 connected to the PBX and the other E1/T1 connected to the PSTN.
The Mediant™ 1000 is based on VoIPerfect™, the comprehensive and field-proven architecture common to AudioCodes’ media gateways that achieved the outstanding voice quality results in the latest “Speech Quality Test Event” held by ETSI (European Telecommunications Standard Institute). The open platform on the Mediant™ 1000 offers partners the option to host their own applications (e.g., IP-PBX or call center application) on an optional processor card or Single Board Computer (SBC) to provide a complete solution within the Mediant 1000
The Mediant™ 1000 Media Gateway is part of AudioCodes's initiative to provide best-of-breed complete media gateways to ISPs and Enterprise customers.
Contact ABP to learn more about Audiocodes VoIP gateways.
The Mediant™ 1000 supports up to 4 digital trunks (fully flexible, from a single trunk per module all the way to a single module with all 4 trunks) or as a purely analog configuration, supporting up to 24 analog ports (6 modules with 4 ports on each). The digital module can have up to 4 regular E1/T1 Span interfaces, or can have 1 or 2 paired spans acting as life-line interfaces for switching to the PSTN in case of power failure or network problems. The analog Module can consist of FXS or FXO interfaces, where one FXS can be used as a life-line interface for switching to the PSTN.
This gateway provides a full suite of codecs, standard compliant control protocols and PSTN signaling interfaces for of media gateway applications in most environments. It allows ISPs and System Integrators broad application support and a quick time-to-market solution.
The Mediant™ 1000's SIP, MGCP, Megaco/H.248 and H.323 call control make the gateway suitable for integration into almost any current or future application.
Mixed analog and digital interfaces on a single platform.
Supports 1, 2, or 4 E1/T1/J1 spans in 1U, and up to 24 analog ports FXS/FXO, each module with up to 4 ports and up to 6 analog modules.
Industry leading VoIP voice quality
The media gateway is installed using a paired E1/T1 which provides life-line/PSTN fallback capabilities
Expansion slot for application processor
Lifeline switching in case of power failure
SS7 + Voice Tunneling (F-link)
RS-232 and Telnet for basic (CLI) configurational
AudioCodes Web Interface (HTTP/HTTPS)
Syslog (for events, alarms and CDRs)
Wide support of PSTN protocol termination. CAS/PRI, R2 PSTN interfaces
Open scalable architecture
Designed for NEBS level 3.
IETF & ETSI standards
G.711, G.723.1, G.728, G.729A,
MGCP, SIP, H.323
Dual Ethernet ports
SMDI support for Voice Mail applications (Voice mail side)
SNMP-based alarms for higher-level management (NMS) system
RADIUS (for AAA)
Interop tested with snom 4S softwitch and, many other SIP based partner products.
Please download the PDF file for complete specifications
Calling cards, Pay phones, hotels
MTU access gateways
