Digium's card (based on VoiceBus technology) and a Carrier Grade Software-based Echo Canceller

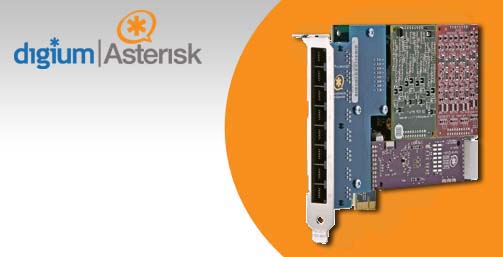

The TDM800P is an 8-port analog telephony interface card. Based on Digium’s patent-pending VoiceBus technology, the TDM800P is a half-length, full-height 32-bit 33MHz PCI 2.2-compliant, 8 port modular analog telephony interface card.
The AEX800 is a half-length PCI-Express 1.0-compliant, 8 port analog interface card. It supports combinations of station and/or trunk/line modules for a total of eight (8) interfaces.
TDM/AEX800P support single or quad FXS station or single or quad FXO office interfaces (for a total of 8 maximum channels on a single PCI slot) for connecting analog telephones and lines trough a PC. Using TDM hardware, Open Source Asterisk PBX software, and a standard PC, users can create a Small Office Home Office (SOHO) telephony environment that includes all the sophisticated features of a high-end PBX/Voicemail platform.
The VoiceBus technology, as first introduced on Digium’s TDM2400P, allows the TDM800P and AEX800 to use an industry standard bus-mastering PCI interface, as found in millions of PCs worldwide, to maximize system compatibility and eliminate system conflicts.
The TDM800P and AEX800 may be used in conjunction with Digium's High Performance Echo Canceler (HPEC), a commercial and toll quality hybrid echo cancellation solution on a global scale. The HPEC is a software designed solution to operate under 32-bit and 64-bit Linux and provides echo cancellation for configurable tail lengths of 16ms (128 taps), 32ms (256 taps), 64ms (512 taps), and 128ms (1024 taps) on a per channel basis.
The naming convention for the TDM/AEX800 bundle is as follows: TDM8XYB and AEX8XY. Where "TDM8" or "AEX8" denotes that the card has up to 8, "X" denotes the number of FXS ports, "Y" denotes the number of FXO ports. All 8 ports may be connected to RJ-11 interfaces directly on the PCI card without the use of dongles or splitters.
Using Digium’s hardware, Asterisk PBX software and standard PCs, users can create SME or SOHO telephony environment that includes all the sophisticated features of the high-end PBX/Voicemail platform.
To achieve hardware echo cancellation, any of these cards can work in conjunction with the new module VPMADT032. The VPMADT032 provides 128 ms or 1024 taps on each of up to 31 channels and is based on Adaptive Digital Technology's echo cancellation algorithm and runs on a Texas Instruments DSP. The ADT echo can technology is G.168 compliant and has been approved by the AT&T labs as toll-quality.
If the hardware echo cancellation module is not installed, the TDM/AEX800 may be used in conjunction with Digium's High Performance Echo Cancellation (HPEC) software, a commercial and toll quality hybrid echo cancellation solution. Digium's HPEC provides 16ms to 128ms of selectable near-end ITU G.168 compliant echo cancellation in software.
Contact ABP to learn more about the Digium cards.
1.4 GHz Pentium 4 or better with 64MB RAM
Available Full-length PCI Slot
The HPEC provides echo cancellation for configurable tail lengths of 16ms (128 taps), 32ms (256 taps), 64ms (512 taps) and 128ms (1024 taps), on a per channel basis
G.168 Echo Can. Module, 128 ms or 1024 taps on each of up to 31 channels based on Adaptive Digital Technology, 1 per TDM800P
Storage Range: -20° to 65°C, 4° to 149° F
Operation Range: 0° to 50°C, 32° to 122° F
Humidity: 10-90% non-condensing
Small Office Home Office (SOHO) applications
Calls between branch offices
Gateway Termination to Analog Telephone lines
