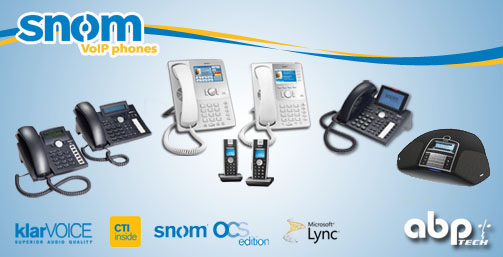

snom 300 Family of IP Business Phones
snom360

snom offers a complete range of cost effective Business IP Phones

The snom 300 series are high-end but affordable business phones, which addresses the communication needs of power users such as executive and administrative staff who require very high standards from communication systems.

snom today is probably the most robust Business IP Phone on the market for the SIP standard. snom technology is a leading IP technology company out of Germany which has been building SIP products since 1999 and have won technology awards and interoperabilty awards. snom technology has been represented in the US by ABP since 2000 and has been deployed successfully into the most diverse business applications through, OEMs and resellers all across the Americas.

The strength of snom's new product line is the quality of the software, the robustness of the plastic and ergonomics of its handset and overall design plus the interoperability with allmost all SIP proxy's, IPBXs, and other SIP products due to its adhearance to the IETF SIP RFCs. Open standard complaince makes the snom phone universally applicable offers an ensures longevity and investment protection.

The snom 300 series product line includes the snom320 with a small but highly effective 2x24 character display for numbers dialed, DID, ANI display etc. The next step up is the snom360 with the same keyboard and layout, both have 12 progamable keys with LEDS that can serve as 12 lines, destination or station selection keys with presence indicator. The snom360 has a 6 line / 128 x 64 pixel graphical display.

The snom 300 series can be programmed for custome softkeys and can be private labeled in volume.

Call your reseller or ABP for more information. Find Reseller

Technical Specifications
Product Applications Scenarios

Feature List

2 Line 24 Char (snom320) or 6 Line backlit display (snom360)

12 programmable function keys

RFC 3261 compliant SIP stack

NAT-support

16-bit, 16 kHz audio subsystem

2 port Ethernet switch

national language support (NLS), Asian Language Support (ALS): Japanese

loose routing and strict routing support

blind and attended transfer

call hold, call wait

music on hold support

call divert, call intrusion, call completion

number guessing

speed dialing, handsfreemode dialling

missed calls, taken calls, call waiting indication

STUN client (NAT traversal)

Plug and Play support (UPnP)

HTTP Server

phone book, conference call, redial, several ring tones

DTMF

TOP

Technical Specifications

Hardware

Power supply: 5V (Power supply included)
or POE IEEE 802.3af supported on all 300 series phones

Memory: 16MB DRAM, 4MB  FLASH

CPU: Infineon

Temp range: 0 C to 40 C (32°F to 104°F)

Measures: 25.5 cm W x 21 cm H x 9,5 D cm (10 x 81/4 x 33/4”), Weight 802g

Display: 2 x 24 display w/ graphical field

Keyboard: 34 keys, 6 LEDs, 4 soft keys

Programmable function keys: with expansion module up to 65 keys

Audio:CNG- Comfort Noise generation, VAD- Voice Activity detections Dynamic Jitter-Buffer, Loudspeaker, Inclusive 27 ring tones
Voice compression, Echo compression, Silence suppression

Connector:
Network: (2) 10/100 BaseT E auto-detect RJ45 (Ethernet), Handset: RJ14 Standard
Headset: Standard Computer and RJ Connector, Power: Center pin+

Software

Operating System: Linux

Configuration: Via web browser & / or Phone’s graphical display

Protocols Internet: IP, TCP, UDP, DHCP

VoIP: SIP RFC3261 compliant, H.323,H.255, H.245,H.450, STUN client (NAT traversal), UPnP client , Digest authentication,  Loose routing and strict routing support, Error-information support, Reliability of provisional responses (RFC3262), DNS SRV (RFC3263), redundant server support, Offer/answer (RFC3264), Message waiting indication reception, MWI events (RFC3265), Session-Timer, Dialog-State, ΕNUM (RFC3261), ΝAPTR (RFC2915), rport (RFC3581), REFER (RFC3515), Outbound proxy support, initial route

Voice encoding: G.711 aLaw, uLaw, G.729A, GSM 6.10 (Full rate), GIPS (optional), 48 kHz 16 bit audio hardware, In-band DTMF, Out-of-band DTMF (RFC2833)

TOP

Product Application Scenarios

Enterprise Solutions

Branch Office Scenarios

Multi Tennant / Dwelling Scenarios

Government Scenarios

Educational Scenarios
